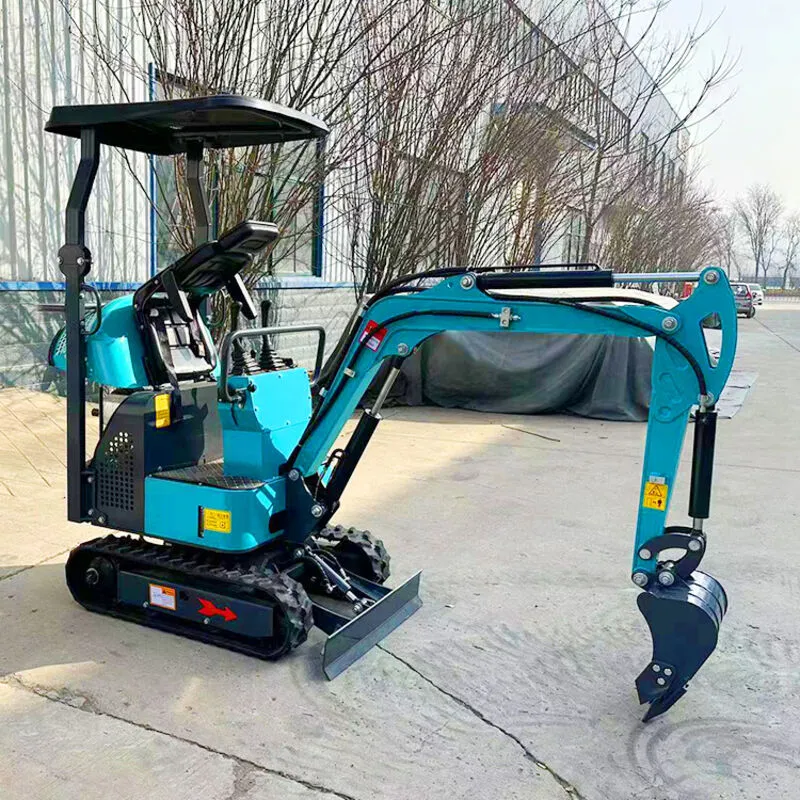

SE15 Mini excavator

SE15 mini excavator, operating weight 1500kg. Equipped with KOOP KD292F engine, abundant power. 0.03m ³ bucket capacity with 13.5kN excavation force, efficient operation. It is compact, with a minimum turning radius of 1550mm, suitable for narrow sites. Standard canopy and toolkit, enjoy 2 years of quality assurance, widely used in urban construction, gardens and other small projects.

Category: SE15 Mini excavator
Key word: SE15 Mini excavator

  Whatsapp : +8613395319660


  Email :  [email protected]


Product details:

Category Details
Operating Weight 1,500 kg
Digging Bucket Capacity 0.03 m³
Bucket Width 400 mm
Travel Speed 0 – 3.5 km/h
Gradeability 35°
Roof Yes
Tool Kit Yes
Warranty 2 Years
Engine
Brand KOOP KD292F
Rated Power 14.1 kw (19.1 hp) @ 3000 rpm / 15.0 kw (20.4 hp) @ 3600 rpm
Type Diesel, 2 – Cylinder, 4 – Stroke, Air – cooled, Vertical
Bore Stroke 92 × 75
Displacement 0.997L
Compression Ratio 19:1
Oil Tank Capacity 2.75 L
Oil Model SAE10W30
Fuel 0# (Summer), – 10# (Winter), Diesel
Net Weight (N.W.) 78 kg
Starting System Electrical
Main Dimensions
Overall Dimension (L × W × H) 2,450 × 980 × 2,200 mm
Track Length 1,250 mm
Min. Ground Clearance 385 mm
Min. Turning Radius 1,550 mm
Chassis Width 980 mm
Operating Performance
Max. Digging Force 13.5 kN
Max. Digging Depth 1,800 mm
Max. Vertical Digging Depth 1,650 mm
Max. Digging Height 2,500 mm
Max. Dumping Height 1,850 mm
Max. Digging Radius on Ground 2,900 mm
Max. Lifting Height of Bulldozer Blade 325 mm
Max. Digging Depth of Bulldozer Blade 210 mm



Product features:

1. Compact and Agile Design

Small Dimensions:

Measuring 2,450 × 980 × 2,200 mm in overall dimension, it has a relatively compact footprint. This allows it to access and operate in confined spaces, such as narrow urban streets, small construction sites, or areas with limited access.

Good Maneuverability:

The minimum turning radius of 1,550 mm enables it to make sharp turns easily, enhancing its agility during operation. The 1,250 – mm track length and 980 – mm chassis width contribute to its stability while maintaining the ability to move nimbly. The 385 – mm minimum ground clearance helps it navigate over small obstacles and uneven terrain.

 2. Decent Power and Performance

Powerful Engine:

Powered by the KOOP KD292F engine, it offers a rated power of 14.1 kw (19.1 hp) at 3000 rpm or 15.0 kw (20.4 hp) at 3600 rpm. This 2 – cylinder, 4 – stroke, air – cooled diesel engine provides sufficient power for various excavation tasks. The air – cooled design simplifies the engine’s cooling system and makes it suitable for use in different environmental conditions.

Impressive Digging Capabilities:

With a digging bucket capacity of 0.03 m³ and a bucket width of 400 mm, it can effectively scoop and handle materials. The maximum digging force of 13.5 kN allows it to break through tough soil and perform demanding excavation work. The max digging depth of 1,800 mm, max vertical digging depth of 1,650 mm, max digging height of 2,500 mm, max dumping height of 1,850 mm, and max digging radius on the ground of 2,900 mm enable it to cover a wide range of excavation and material – handling operations.

3. Operator  Friendly and Reliable

Standard Accessories:

The inclusion of a roof provides protection for the operator from the elements, such as sunlight and rain. The availability of a tool kit means that basic maintenance and minor repairs can be carried out promptly on – site, reducing downtime.

Long Warranty:

The 2 – year warranty reflects the manufacturer’s confidence in the product’s quality and durability. It also gives users peace of mind, knowing that they are backed by reliable after – sales support.

 4. Energy Efficient and Cost  Effective

Fuel and Oil Specifications:

Using 0 diesel in summer and – 10# diesel in winter, it is adaptable to different seasons. The engine’s fuel consumption is likely to be reasonable considering its power output. The 2.75 – L oil tank capacity with SAE10W30 oil model ensures proper lubrication and smooth operation of the engine, contributing to its long – term performance and cost – effectiveness.



Application:

The SE15 mini excavator plays an important role in various scenarios with its many advantages. In urban pipeline laying operations, it can operate flexibly in narrow streets, accurately excavate trenches, and ensure the smooth installation of underground pipelines. When creating garden landscapes, small rockery foundation excavation and flower bed topography shaping can be carried out. In the agricultural field, it can reclaim small pieces of farmland, dig irrigation ditches, and help agricultural production. In the construction of small buildings, it undertakes tasks such as foundation excavation and material handling. Its moderate weight of 1500kg, combined with flexible handling and stable excavation performance, breaks through site limitations, provides efficient and reliable operation support for various small projects, and effectively improves construction efficiency.





SHANDONG SOAO HEAVY INDUSTRY CO.,LTD.

Product Highlights

Excavation force and load

Soao large excavators can handle large rocks and heavy objects, with high lifting capacity, long working radius, and high power, making them suitable for large construction projects.

Advanced control system

Soao's large excavator is equipped with advanced hydraulic control and other functions, which can precisely fine-tune excavation and hoisting operations and efficiently handle high-power operations.

Custom

Can be customized according to demand, some models have advanced hydraulic systems, high-tech control panels and other high-end configurations to improve performance and operational efficiency.

Adapt to the weather

Equipped with preheaters, special lubricants, and an optimized cooling system, it can operate reliably in severe weather conditions such as cold, hot, humid, heavy rain, or dust.

Flexible body

Small size, small footprint, can work in narrow spaces and restricted areas, adapt to a variety of working environments, and can easily pass through narrow passages and bypass obstacles.

Versatile use

It can be equipped with a variety of accessories, such as buckets of different shapes, auger drills, hydraulic breakers, etc., to complete various tasks such as excavation, loading, and crushing.

Cost-effective

Although the power is small, the hydraulic system provides precise control, efficient operation, and fuel-efficient engines, reducing operating costs and environmental impact.

Easy to operate

The control system is simplified, focusing on humanized design, easy to operate, and can be flexibly controlled in a small space, reducing the operator's operation difficulty.

SHANDONG SOAO HEAVY INDUSTRY CO.,LTD.

Company Advanced

Industry experience

With years of experience, we have amassed a deep technical foundation and expertise, enabling us to better meet our customers' needs.

After-sales guarantee

A well-developed global spare parts supply network ensures fast delivery of common spare parts and reduces equipment downtime.

Customized service

We can provide our customers with comprehensive customization services, customized according to their specific needs, and on-site technology.

Training support

It can be conducted at the customer's site or at the company's training center to provide excavator operator training to customers.

Perfect quality control

Strict quality control, such as finished product inspection and on-site material inspection, ensures reliable product quality.

Innovation R & D

Focusing on R & D innovation, the team members have extensive industry experience and cutting-edge technical knowledge.

SHANDONG SOAO HEAVY INDUSTRY CO.,LTD.

Optional bucket

The standard 1.0 cubic meter bucket is carefully made of special steel. This special steel has been specially treated by a special process, and the texture is super hard and the wear resistance is excellent. In the face of complex geological layers, the excavation is crisp and neat, and it is filled quickly, which greatly improves the efficiency of trench excavation and soil and rock dumping.

SHANDONG SOAO HEAVY INDUSTRY CO.,LTD.

Original hydraulic arm

The improved design of the boom, arm and buckle is adopted to optimize the mechanical structure, effectively disperse the working stress and greatly reduce the wear of components. At the same time, the structural components are made of stainless steel or plastic, which have excellent corrosion resistance and aging resistance, further extending the service life and reducing the long-term use cost.

SHANDONG SOAO HEAVY INDUSTRY CO.,LTD.

Driving space

The cab of the device is made of high-intensity lighting glass, which not only creates a spacious and comfortable space for the interior, but also brings a very wide field of vision. Equipped with a flexible and adjustable electronic instrument panel, it is more convenient to operate, greatly improving the overall work efficiency and providing strong support for various engineering operations.

SHANDONG SOAO HEAVY INDUSTRY CO.,LTD.

Crawler

The track of this equipment is made of strong steel rails, which are hard and corrosion-resistant, giving it a long service life. It supports 360 ° rotation, is flexible in operation, and is easy to learn. At the same time, it is equipped with a wear-resistant tug, which can effectively reduce wear and friction noise and ensure smooth operation.


SHANDONG SOAO HEAVY INDUSTRY CO.,LTD.

Brand Engine

The engine of this excavator adopts an advanced hydraulic drive electronically controlled fuel injection system, which can precisely control the fuel injection amount and greatly reduce fuel consumption. Not only that, this engine can easily meet the Euro 2 emission standard, which is green and environmentally friendly. Its power has been lengthened and optimized to provide strong horsepower for various types of work and significantly improve work efficiency.


FAQ

Large – scale excavators have much higher digging forces, often several times that of small – scale ones. They can handle larger – sized rocks and move heavier loads. For example, a large – scale excavator might have a bucket capacity of 3 – 5 cubic meters, while a small – scale one could be around 0.1 – 0.5 cubic meters. Also, large – scale models generally have higher lifting capacities and longer reach, which is crucial for large – scale construction projects.
Large – scale excavators consume more fuel due to their more powerful engines and higher workload. On average, a large – scale excavator might consume 30 – 50 liters of fuel per hour during heavy – duty operation, while a small – scale excavator would consume 5 – 15 liters per hour. However, many of our models, both large and small, are designed with fuel – efficient technologies to minimize costs.
Large – scale excavators are ideal for large – scale open – pit mining, large construction sites like building dams or large – scale infrastructure projects. They can work efficiently on relatively flat but expansive terrains. Small – scale excavators are more versatile for working in narrow spaces, such as urban renovation projects, small – scale landscaping, or areas with limited access, like backyards or small construction sites in crowded areas.
Yes, we offer customization services for both large – scale and small – scale excavators. Whether you need a bucket with a special shape for handling specific materials like sand, gravel, or rocks, or a bucket with enhanced wear – resistance for heavy – duty use, we can meet your requirements.
For standard large – scale excavator models, the delivery time is usually about 45 – 60 days. For small – scale excavators, it can be around 30 – 45 days. However, if there are customized requirements, the delivery time may be extended by 15 – 30 days, as we need to ensure the production meets your specific needs.
Yes, we offer comprehensive operator training programs for both large – scale and small – scale excavators. Our training covers basic operation, advanced techniques, safety procedures, and daily maintenance. We can conduct on – site training at your location or at our training centers, ensuring your operators are well – equipped to handle the machines.
Yes, we can arrange a demonstration for you. You can visit our showroom or we can send a technician with the excavator to a location convenient for you. During the demonstration, you can see the machine’s performance firsthand, including its digging ability, maneuverability, and ease of operation.
We offer a one – year warranty for both large – scale and small – scale excavators. During this period, if there are any quality – related issues, we will repair or replace the faulty parts free of charge. We also provide lifetime technical support to ensure the long – term operation of your excavators.
