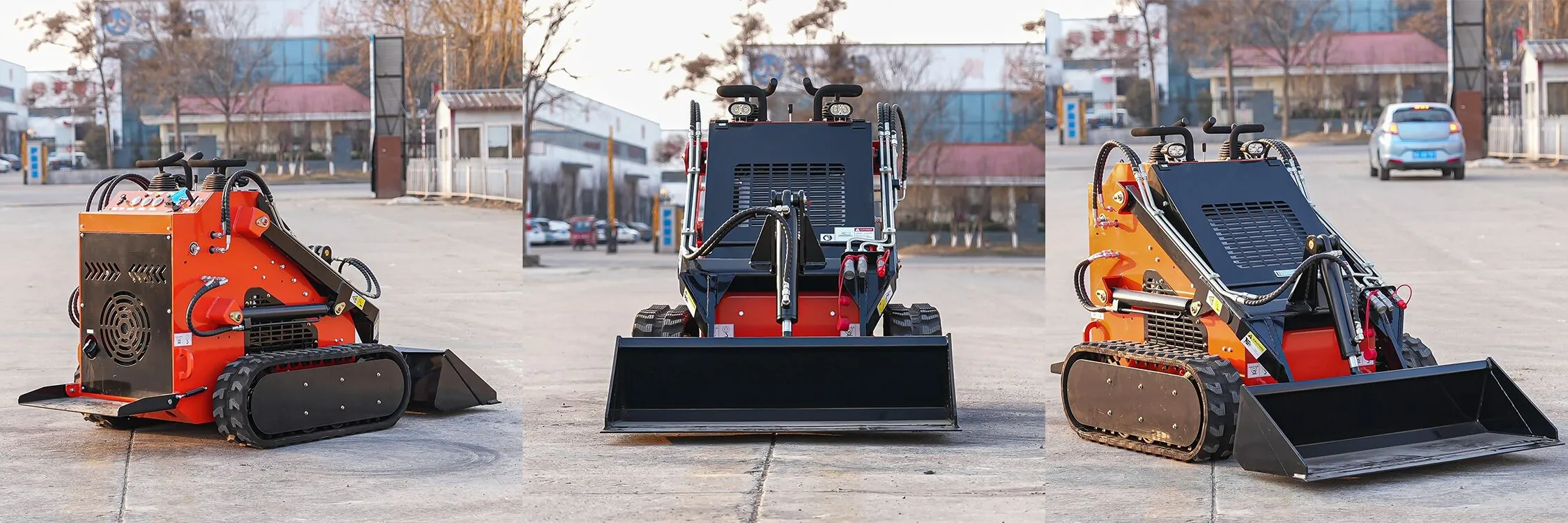

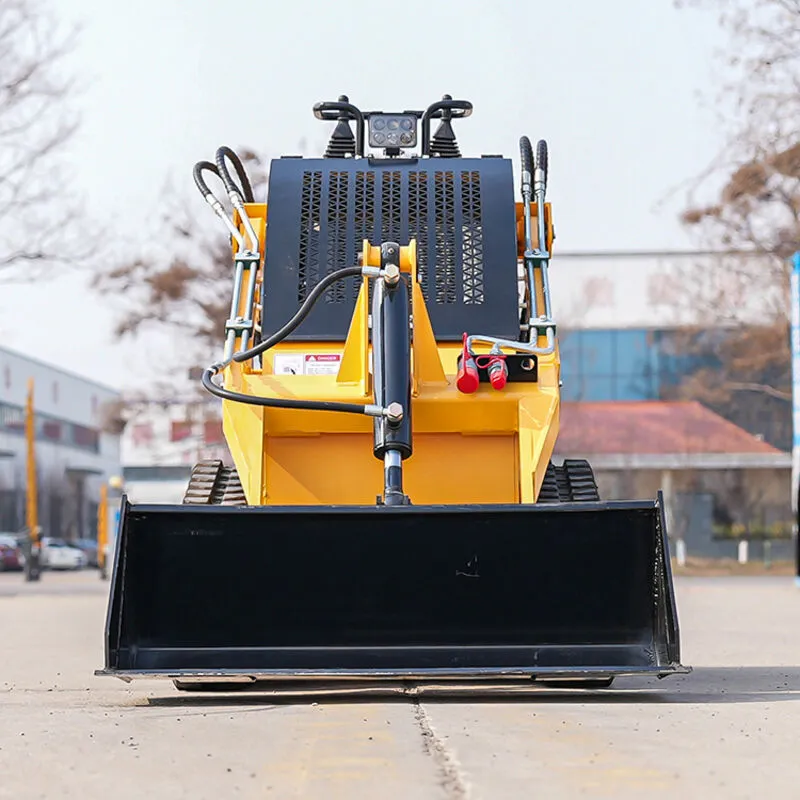

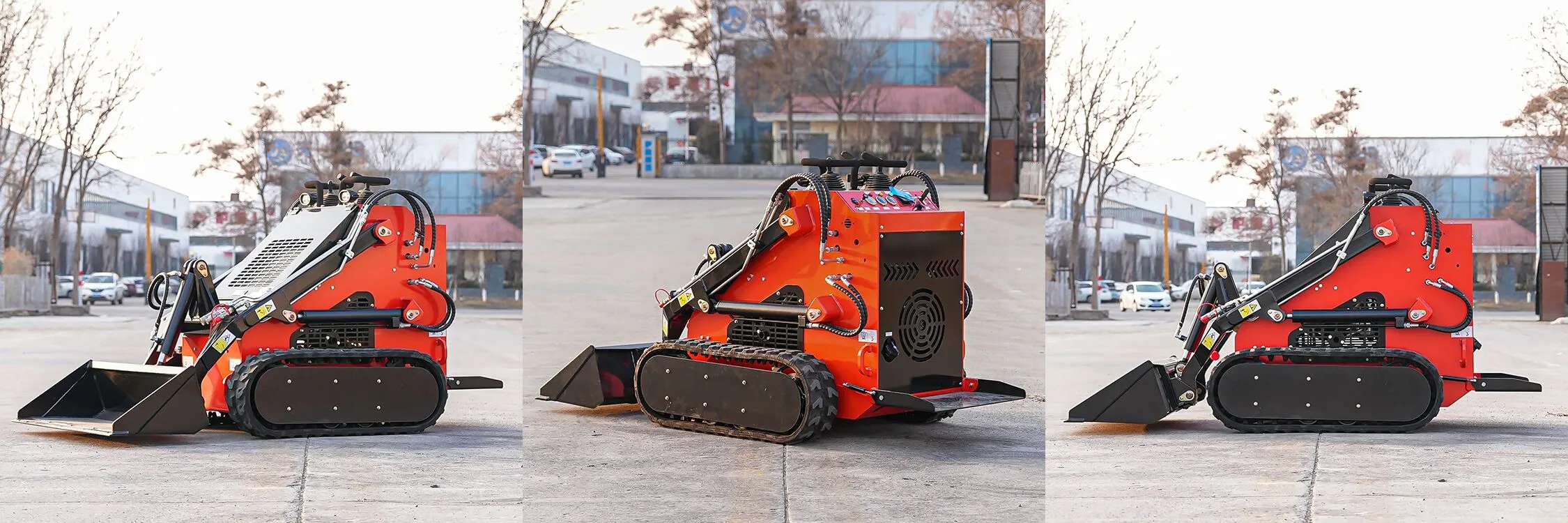

Skid-steer Forest Cat (tracked type)

Skid-steer ForestCat (tracked) is a tracked skid-steer loader designed for forest operations and harsh terrain. It is equipped with a powerful power system and traction, and can operate stably on slippery, muddy or rugged ground. It is suitable for heavy-duty tasks such as wood handling, forest felling, and earthwork. Its skid-steering system enables the equipment to turn flexibly in a small space, enhancing the flexibility and maneuverability of operation. The equipment has a high load-bearing capacity and excellent stability, making it an ideal operating tool in complex environments.


Category: Skid-steer Forest Cat (tracked type)
Key word: Skid-steer Forest Cat (tracked type)

  Whatsapp : +8613395319660


  Email :  [email protected]


Product details:

Specification SMH330 SMH330S SMH380 SMH380S
Walking Type Wheel Tires Wheel Tires Wheel Tires Rubber Track
Rated Load 200 kg 200 kg 300 kg 300 kg
Bucket Capacity 0.15 m³ 0.15 m³ 0.15 m³ 0.15 m³
Engine Brand Briggs & Stratton Briggs & Stratton RATO RATO
Rated Power 13.5 HP 13.5 HP 15/16.8 kW 15/16.8 kW
Fuel Tank 25L 25L 25L 25L
Engine Oil 1.1L 1.1L 1.6L 1.6L
Hydraulic Tank 25L 25L 25L 25L
Max. Working Height 2100 mm 2100 mm 2100 mm 2100 mm
Max. Dumping Height 1480 mm 1480 mm 1480 mm 1480 mm
Max. Dumping Distance 430 mm 430 mm 430 mm 430 mm
Length with Bucket 2120 mm 2120 mm 2285 mm 2285 mm
Length without Bucket 1738 mm 1738 mm 1855 mm 1855 mm
Machine Width 1040 mm 1000 mm 1155 mm 1090 mm
Bucket Width 1000 mm 1000 mm 1150 mm 1150 mm
Overall Height 1190 mm 1190 mm 1270 mm 1270 mm
Forward Turning Radius 1300 mm 1300 mm 1300 mm 1300 mm



Product Features:

1. Track design:

Equipped with a track system, it provides excellent traction and stability, especially suitable for muddy, slippery or rugged ground. It can maintain stability on soft ground or in forest environments, reduce pressure on the ground and avoid sinking.

2. High traction and strong power:

Adopt an efficient power system to ensure stable operation under heavy load conditions. It has excellent traction and is suitable for forest felling, wood  and other high-intensity operations.

3. Skid steering system:

Equipped with a skid steering system, it can turn flexibly in small and complex spaces, increasing the flexibility of operation, especially suitable for narrow path operations in forest environments.

4. High load capacity:

It has a large load capacity, can handle heavy material handling and large-scale operation tasks, and improve work efficiency.

5. Excellent stability:

The equipment design enhances its stability, and it can still complete tasks efficiently even on complex, soft or slippery ground. It is suitable for long-term operation in harsh environments and has strong durability.

6. Versatility:

Supports a variety of attachments, such as wood grabs, buckets, forklifts, etc., which can be quickly replaced according to different operating requirements, increasing the application range of the equipment.

7. Environmental adaptability:

The equipment is particularly suitable for complex environments such as forest operations, agriculture, and landscaping. It can cope with different terrains and work requirements and provide efficient and stable operating performance.

Application:

Crawler skid steer loaders excel in forest operations and other harsh environments, and are widely used in tasks that require strong traction and stability. Its tracks enable it to travel stably on slippery, muddy or rugged ground, making it particularly suitable for operations such as forest timber handling and tree trimming. It can operate flexibly on narrow forest trails and efficiently complete timber clearing and transportation tasks.

In the agricultural field, the skid-steer forest cat (crawler type) can cope with wet ground and uneven farmland, and perform tasks such as soil handling, farmland preparation and crop handling. It is particularly suitable for high-load operations in slippery environments.

In landscaping projects, the equipment can be used for tasks such as landscape transformation, tree planting and earthwork construction. Its high load-bearing capacity and stability make it an ideal choice for garden design and construction.

SHANDONG SOAO HEAVY INDUSTRY CO.,LTD.

Product advantage

multifunctional job

It can quickly replace a variety of working accessories, such as buckets, forks, crushers, milling machines, etc., with a variety of functions to meet diverse construction needs.

Small and flexible

The compact body design allows it to have a minimal turning radius, allowing it to travel freely in narrow spaces such as indoors, alleys, greenhouses, and other venues.

Premium parts

Key components are selected from internationally renowned brands and are strictly screened and tested to ensure the overall performance of the equipment is stable and reliable.

Easy maintenance

The components are well-laid out, easy to access, and the daily maintenance and repair work is simple and convenient, reducing the difficulty and time cost of maintenance.

Super terrain adaptation

The crawler design greatly increases the contact area with the ground, allowing it to easily navigate through soft or complex terrain such as mud, sand, and snow.

Environmental adaptation

In the face of rough or irregular ground, the track can better fit the ground undulations, maintain the stability of the equipment, and ensure the safety and efficiency of use.

Powerful grip

The friction between the track and the ground is high, and the grip is strong. When pushing and pulling, it can provide greater traction, making the operation more efficient and powerful.

Precise control response

With the user-friendly control system, the operator can precisely control the driving and steering of the track, respond quickly, and complete various complex operations.

SHANDONG SOAO HEAVY INDUSTRY CO.,LTD.

Company Advanced

Industry experience

With years of experience, we have amassed a deep technical foundation and expertise, enabling us to better meet our customers' needs.

After-sales guarantee

A well-developed global spare parts supply network ensures fast delivery of common spare parts and reduces equipment downtime.

Customized service

We can provide our customers with comprehensive customization services, customized according to their specific needs, and on-site technology.

Training support

It can be conducted at the customer's site or at the company's training center to provide excavator operator training to customers.

Perfect quality control

Strict quality control, such as finished product inspection and on-site material inspection, ensures reliable product quality.

Innovation R & D

Focusing on R & D innovation, the team members have extensive industry experience and cutting-edge technical knowledge.

FAQ

The mini skid steer loader is widely used in construction, landscaping, agricultural operations, snow removal, and warehouse handling. It is highly versatile and flexible.

We offer a variety of attachment options, including buckets, augers, sweepers, hydraulic breakers, pallet forks, and snow blades, to meet different operational needs.

Yes, our products are certified with CE and ISO9001, meeting the safety and environmental standards of Europe and other countries.

We provide a 12-month or 1,000-hour warranty (whichever comes first). Additionally, we offer spare parts and technical support anytime.

We support various payment methods, including T/T (bank transfer) and L/C (letter of credit). Typically, the payment terms are 30% advance payment and 70% before shipment.

Yes, we support customization of colors, brand logos, and special features.

Yes, we welcome you to visit our factory and can provide on-site demonstrations. Product trials can be arranged with prior notice.
Yes, we provide detailed operation manuals and video guides. If needed, we can also arrange remote operation training.
